Vertical Bass Details 2


The Merchant Vertical Bass uses Spruce Spring Bars (U.S. Patent # 4,635,523) to give the bridge the flexibility it would have on the top of an acoustic bass. The Bars allow me to make the string tension identical as on an acoustic to give the same kind of sound and feel on the electric instrument.

The main function of a bass violin’s top is to act as a speaker cone, producing an amplified sound wave at the frequency of the strings’ vibration. To do this the top is quite flexible, allowing the bridge (and therefore the strings) to move, encouraging that vibration. One of the features that sets the Vertical Bass apart from others is the patented Spruce Spring Bars, which allows the bridge to move much like it would on the top of a bass violin.

I use the Fishman Full Circle transducer system to provide a remarkably accurate rendition of the sound of the double bass. I can also equip it with transducers from B-Band, Barbera and others, as a custom order.

The solid flamed maple neck pivots on the matching body and has a fingerboard of select ebony. I bolt the necks under the fingerboard at the neck butt end to eliminate the possibility of the wood splitting along the grain at t he pivot.The bass can be folded in half (and re-deployed) in less than a minute.

I finish my basses with a centuries old violin varnish like the craftsman of old than overcoat it with an environmentally friendly water based lacquer that I hand rub to a warm luster.

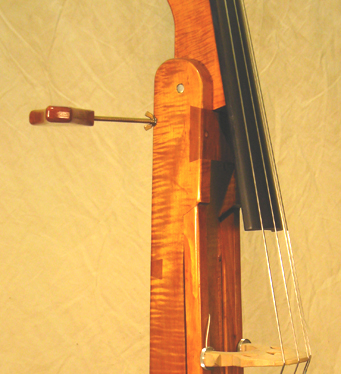

An adjustable solid wood side brace screws into the player’s side of the bass to give the feel of an acoustic bass and to put the strings where the player is used to finding them. The bass has a removable end pin with a "T" bar added to the bottom to stabilize it.The side, endpin and bridge are all that is removed when folding the bass.

The Merchant Vertical Bass comes with a padded gig bag that features an adjustable shoulder strap with a neck cinch, a pair of centered handles and a neck handle for easy loading. There is a large pocket for the side bout with extra room for cables, tuner etc.The case folds and can be used when the bass is collapsed as well as when strung up.It all fits inside the ATA flight case (42" x 13" x 13"). A custom polyethlene case is available for $400. additional.

Click here to go to Order page

Go to other Vertical Bass details page

Any questions? E-mail me-bill@merchantbass.com
